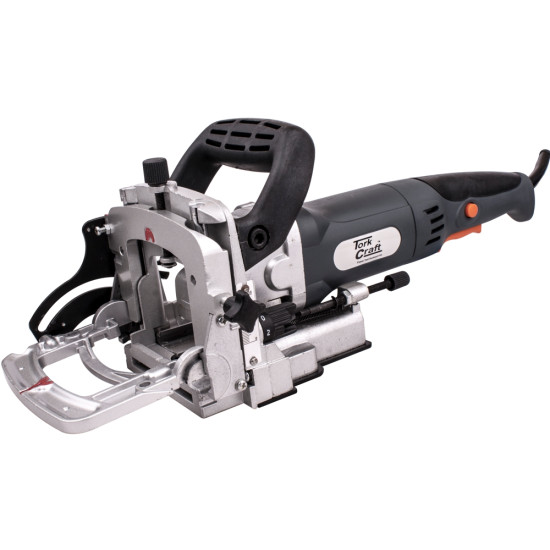

BISCUIT JOINER 900W 11000RPM

BISCUIT JOINER 900W 11000RPM
BISCUIT JOINER 900W 11000RPM
Price
R 2,248.25
Ex VAT: R 1,955.00
  • Stock: In Stock
  • Cat No: BJ02
  • Weight: 4.02kg
  • Dimensions: 41.00mm x 19.50mm x 18.00mm
  • SKU: BJ02
  • Barcode: 6009515806071

Available Options

Biscuit Joiner - 900W 11000RPM

Wattage: 900W
Cuts Slots for: #0, #10 & #20
Rotation speed: 11000 RPM

Application:

A biscuit joiner is a woodworking tool used to join two pieces of wood together. It uses a small circular saw blade to cut a crescent-shaped hole in the opposite edges of two pieces of wood or wood composite panels.

An oval-shaped, highly-dried and compressed wooden biscuit (made from beech wood) is covered with glue, or glue is applied in the slot. The biscuit is immediately placed in the slot, and the two boards are clamped together. The wet glue expands the biscuit, further improving the bond.

Benefits:

  • The grain direction on the biscuits are diagonal to add strength to the joinery.
  • The biscuit provides a quick means of getting a perfectly flush joint, while at the same time reinforcing the joint.

Biscuits for the biscuit joiner:

ORDER NO. SIZE QTY
PC5551 #0 Box of 1000
PC5552 #10 Box of 1000
PC5553 #20 Box of 1000
BIS010 #10 Box of 1000
BIS020 #20 Box of 1000
PC5551-50 #0 Pack of 50
PC5552-50 #10 Pack of 50
PC5553-50 #20 Pack of 50
PC5553-100 #20 Pack of 100
BIS378 378 Pc biscuit kit

Spares for the biscuit joiner:

ORDER NO. DISCRIPTION
TCP10008 ø100x22.22xZ8 blade
CMT240.008.04 ø100x22.22xZ8 blade
BJ01-3 Field coil (stator)
BJ02-1 Armature
BJ01-2 Carbon brushes
BJ01-4 Switch
BJ01-5 Slide hook for switch
Biscuit Joiner - 900W 11000RPM

How to install the blades:

Installing the blades for the Biscuit Joiner is straightforward. Here's a step-by-step guide:

Step 1:
Unplug the power cord, switch off the tool, and wait until all moving parts have completely stopped before making any adjustments.

Step 2:
Undo the four screws at the bottom of the base plate and open the base plate.

Step 3:
Keep the spindle lock button pressed in which is at the top of the joiner and turn the spindle until it locks. This prevents the blade from spinning.

Step 4:
Undo the flange nut from the spindle with a hex key.

Step 5:
Put the blade and flange on the spindle. Ensure that the arrow on the blade is matching the arrow on the joiner.

Step 6:
Put the spindle nut on the spindle and tighten with a hex key.

Step 7:
Release the spindle lock button and turn the spindle to verify that the blade can rotate freely..

Step 8:
Place the base plate in position and tighten the four screws. Check that the base plate is properly fastened and secured before starting the tool.

By following these steps, you can safely and effectively install the blades for the Biscuit Joiner.

Features
  • Safety trigger switch
  • Easily accessible carbon brush ports.
  • Spindle lock button.
  • Adjustable handle for added control.
  • Quick adjustment on height, depth and angle.
  • Dust collection system.
Description Specification
Max RPM 11000
Max Blade Diameter 100mm
Bore diameter 22mm
Spindle thread M6
Wattage 900W
Voltage 230V (50Hz)
Max depth cut 19mm
Stop angle 0° - 90°
90° - 135°
Suitable biscuits #0
#10
#20
Power Cord length 2m
Contents Biscuit jointer
100mm cutting blade
Hex wrench, 5mm
Dust collection bag
Spare set of carbon brushes
Packaging Type Color cardboard box
Packaging weight 2.9kg
Tool weight 2.2kg
Packaging Dimensions 410mm(L) x 200mm(H) x 185mm(W)
Tool Dimensions 385mm(L) x 190mm(H) x 170mm(W)
Material Gearbox: Aluminum
Base Plate: Plastic
Handle: Plastic
Body: Plastic
